Featyres: 1000PIS/PN63
Thread: ASME B1.20.1,BS21.0,DIN2999/259,ISO228-1,JIS B 0203,ISO7/1
Lever:Aluminum Alloy/CF8
O-ring: NBR
Stem: SUS304
Bolt: SUS304
Lever: Aluminum Alloy/CF8
Body: CF8/CF8M
Cap: CF8/CF8M
A Ball Seat(a): RPTFE
Ball: CF8/CF8M
B Ball Seat (b): RPTFE
Integral structure to reduce leakage points. The body adopts profile, reasonable structure and beautiful shape. The seat adopts elastic sealing structure, reliable sealing, easy to open and close. The valve stem adopts the downward structure with reverse seal, the valve stem will not be rushed out when the abnormal pressure boost of the valve chamber. Can set 90° switch positioning mechanism, according to the need to lock to prevent misoperation, driving mode: manual, electric, pneumatic.
SPECIFICATION
| Unit:mm | 1/8″ | 1/4″ | 3/8″ | 1/2″ | 3/4″ | 1″ |
| D | 7 | 7 | 7 | 9.2 | 12.5 | 15 |
| H | 26.5 | 26.5 | 26.5 | 28.3 | 31.5 | 34 |
| W | 22.8 | 22.8 | 22.8 | 22.8 | 22.8 | 22.8 |
| L | 42 | 42 | 42 | 46 | 54 | 65 |
PRODUCT DESCRIPTION
Mini ball valve has internal and external thread, internal thread, external thread interface, stainless steel 304, 316 material, sanitary design, internal and external mirror process, in line with the needs of clean fluid. The stainless steel mini ball valve compact structure, small size, good sealing performance, flexible switching, large flow, beautiful appearance, superior quality.
PRODUCT CHARACTERRISTICS
Flow reduction path
Valve stem anti-ejection device design
The steel ball groove has pressure relief holes
A variety of threaded ends are available

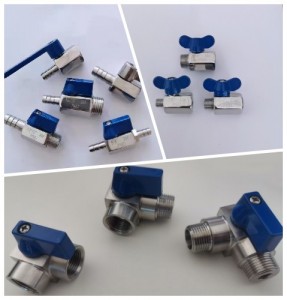

DETAILED PHOTOS
1. Brand name: CZIT, OEM accepted
