Application

Petroleum, chemical, pharmaceutical, fertilizer, electric power and other industries.

Product Main Advantages

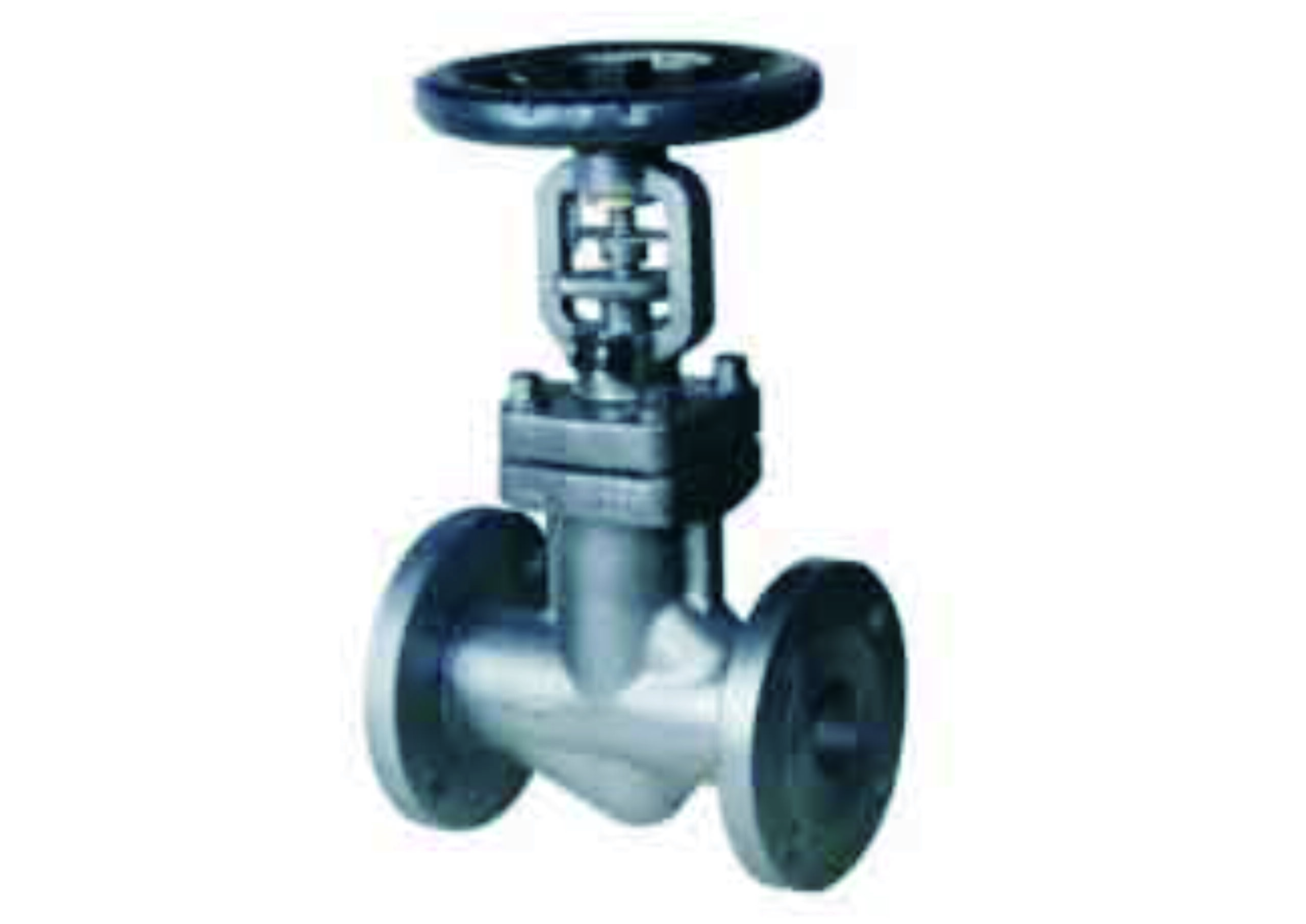

1. Bellows sealed stop valve, its key component is the metal bellows, the lower end of which is automatically seam welded to the valve stem assembly, and the upper end is automatically seam welded to the connecting plate, forming a metal barrier between the fluid medium and the atmosphere to ensure zero leakage of the valve stem.

2. The valve disc adopts a conical design, and the sealing surface and the medium are streamlined, which has better sealing performance and longer service life.

3. Double sealing design (bellows + packing) If the bellows fails, the valve stem packing will also avoid leakage and comply with international sealing standards.

4. The valve cover is equipped with a grease joint, which can directly lubricate the valve stem, nut and sleeve, unlike the traditional method of only adding lubricating oil to the threads.

5. Ergonomically designed handwheel has a longer service life, is easy and convenient to operate, and is safer and more reliable.

Technical Specifications

• Design standard:DIN 3352/GB/T122234-2007
• Structural length: DIN 3202/GB/T12221-2005
• Connecting flange: DIN 2543-2545/HG/T20592-97
• Test and inspection: DIN 3230/JB/T9092-99
