Application

• Valve design and manufacture according to API 6D or BS 1868requirements
• Valve pressure and temperature basis, by the provisions of ANSI B16.34
• The length of the valve structure in accordance with the provisions of ASME B16.10
• Flanges according to ASME B16.25 requirements
• Valves according to API 598 inspection and acceptance requirements.

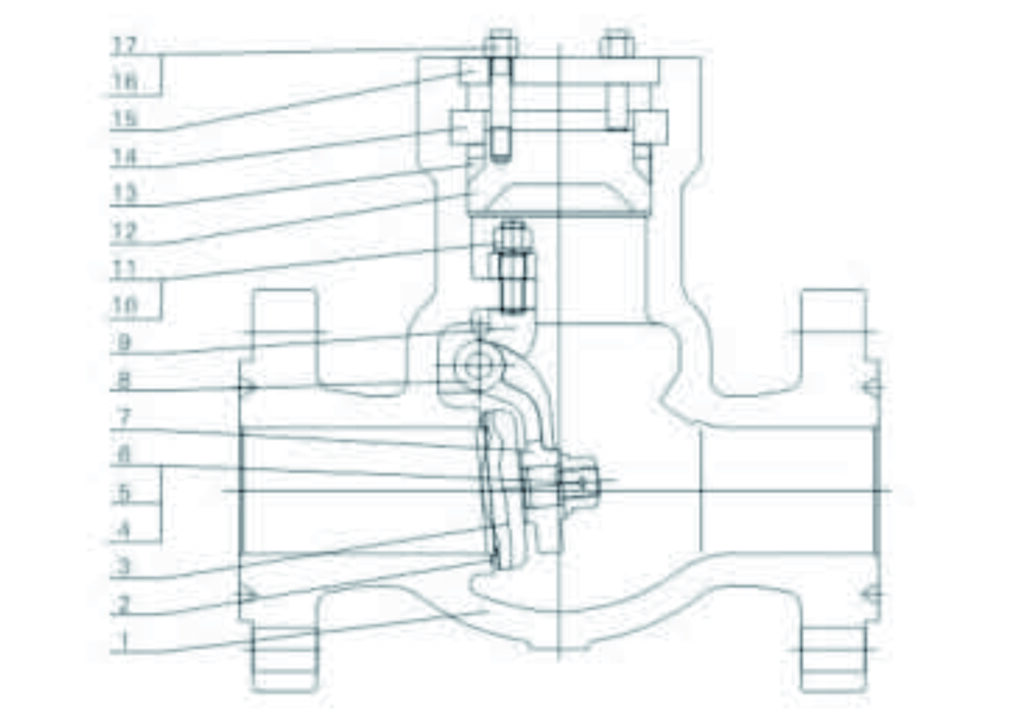

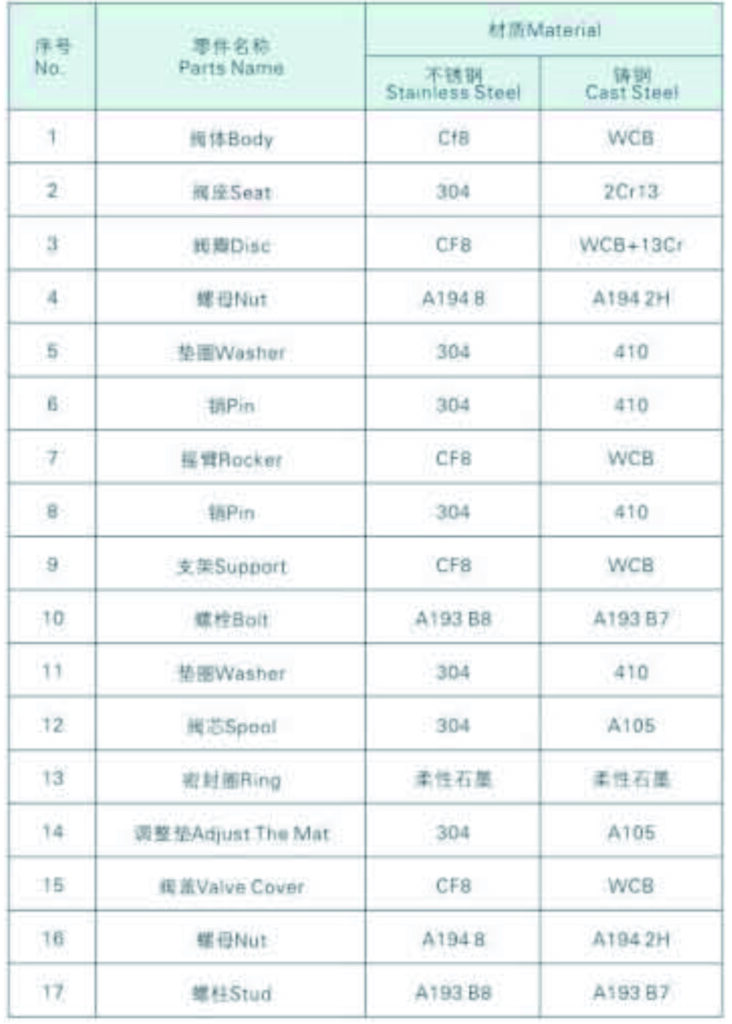

Parts Material

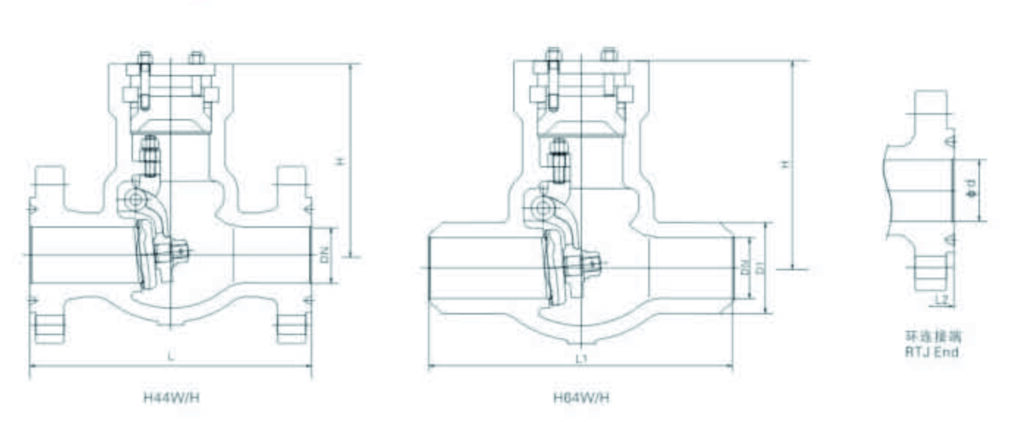

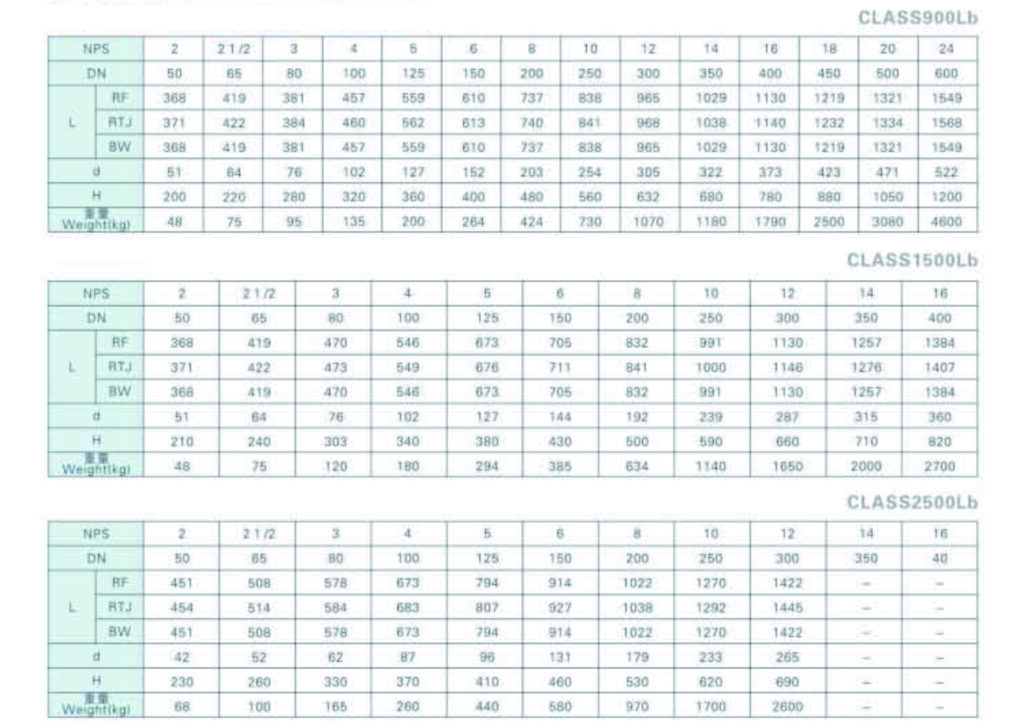

Dimension
